UI_SimulationBatch Class Reference

IToolbar class for displaying and editing the simulation batch list More...

Inheritance diagram for UI_SimulationBatch:

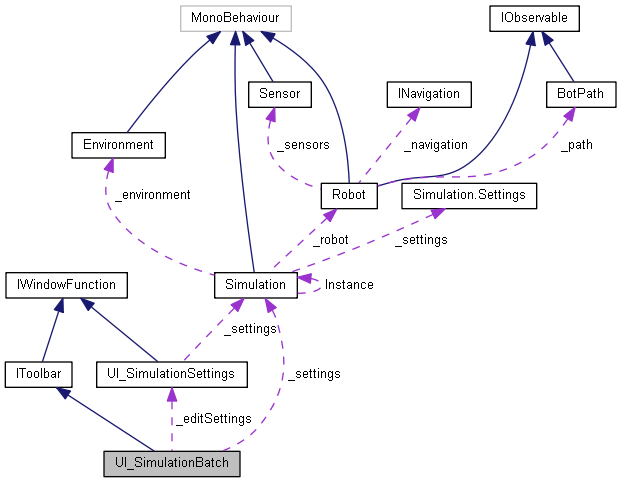

Collaboration diagram for UI_SimulationBatch:

Public Member Functions
	UI_SimulationBatch ()

Properties
bool	contextual [get]
bool	hidden [get, set]
string	windowTitle [get]
Rect	windowRect [get, set]
GUI.WindowFunction	windowFunction [get]
string	currentDir [get]
Properties inherited from IToolbar
bool	contextual [get]
	Gets a value indicating whether this IToolbar is contextual. More...
bool	hidden [get, set]
	Gets or sets a value indicating whether this IToolbar is hidden. More...
Properties inherited from IWindowFunction
string	windowTitle [get]
	Gets the window title. More...
Rect	windowRect [get, set]
	Gets or sets the window rect (window size and position). More...
GUI.WindowFunction	windowFunction [get]
	Gets the window function definition for GUILayout.Window() More...

Private Member Functions
void	Refresh ()
	Refresh this the files and folders in current directory More...
void	BatchListWindow (int windowID)
	List Simulation.Settings in Simulation.batch and provide controls and editing the Simulation.batch More...
void	XmlBrowser (int windowID)
	Browse for XML files to deserialize into Simulation.Settings More...

Private Attributes
Stack< GUI.WindowFunction >	_windows
UI_SimulationSettings	_editSettings
List< string >	_files
List< string >	_folders
string	_subPath
Simulation.Settings	_settings

Detailed Description

IToolbar class for displaying and editing the simulation batch list

Definition at line 9 of file UI_SimulationBatch.cs.

Constructor & Destructor Documentation

UI_SimulationBatch.UI_SimulationBatch

(

)

Definition at line 11 of file UI_SimulationBatch.cs.

                                {
        _settings = new Simulation.Settings();
        _editSettings = new UI_SimulationSettings(_settings);
        _files = new List<string>();
        _folders = new List<string>();
        _windows = new Stack<GUI.WindowFunction>();
        _windows.Push(BatchListWindow);
        // hide window initially
        hidden = true;
    }

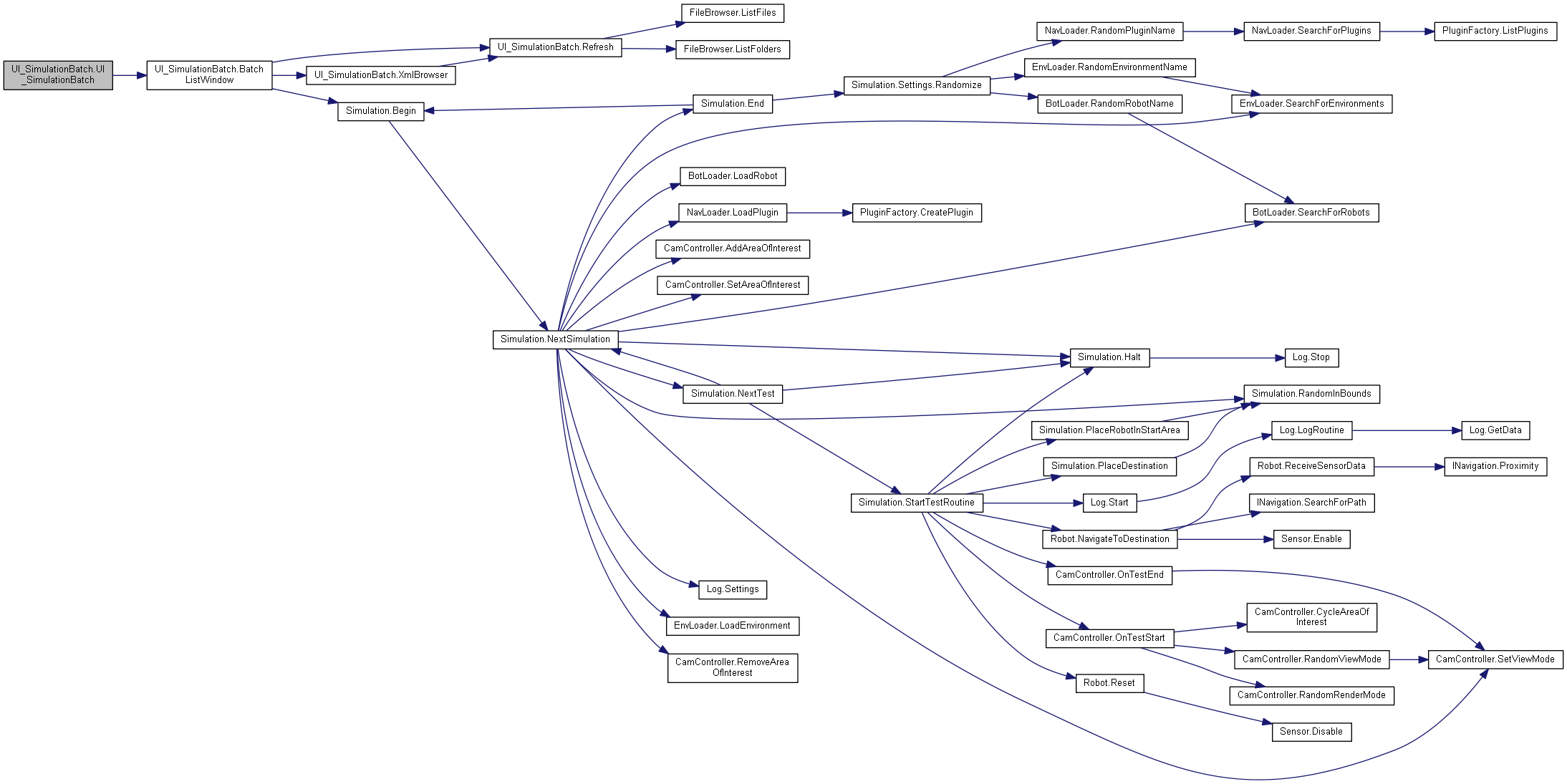

Here is the call graph for this function:

Member Function Documentation

void UI_SimulationBatch.BatchListWindow ( int  windowID )

private

List Simulation.Settings in Simulation.batch and provide controls and editing the Simulation.batch

Definition at line 75 of file UI_SimulationBatch.cs.

                                       {

        GUILayout.BeginHorizontal(GUILayout.Width(UI_Toolbar.I.innerWidth));

        // add a new simulation to batch
        if (GUILayout.Button("Add new simulation")) {
            _settings = new Simulation.Settings();
            _editSettings = new UI_SimulationSettings(_settings);
            UI_Toolbar.I.additionalWindows.Add((IWindowFunction)_editSettings);
        }
        // load a simulation from xml file
        if (GUILayout.Button("Add to batch from file...")) {
            Refresh();
            _windows.Push(XmlBrowser);
        }
        GUILayout.EndHorizontal();

        // Batch list
        GUILayout.Label("Currently in batch:");
        if (Simulation.batch.Count < 1) {
            GUILayout.Label("None");
        }

        for(int i = 0; i < Simulation.batch.Count; i++) {
            Simulation.Settings batchItem = Simulation.batch[i];
            // batch list table row by row
            GUILayout.BeginHorizontal(GUILayout.Width(UI_Toolbar.I.innerWidth));
            // display batch position
            if (i+1 == Simulation.simulationNumber) {
                GUILayout.Label("->");
            }
            // label
            string label = i+1 + ". " + batchItem.title + ", " + batchItem.time;
            if (batchItem.active) label += ", RUNNING";
            GUILayout.Label(label);
            // edit these settings
            if (GUILayout.Button("Edit")) {
                _settings = batchItem;
                _editSettings = new UI_SimulationSettings(_settings);
                UI_Toolbar.I.additionalWindows.Add((IWindowFunction)_editSettings);
            }
            if (GUILayout.Button("X")) {
                Simulation.batch.RemoveAt(i);
            }
            // indicate which have been executed already
            // if (batchItem.executed)

            GUILayout.EndHorizontal();
        }

        GUILayout.Space (10);
        // start simulating
        if (Simulation.batch.Count > 0) {
            if (GUILayout.Button("Start Batch")) {
                BotNavSim.state = BotNavSim.State.Simulating;
                Simulation.Begin();
            }
            GUILayout.Space(20);
            // remove all simulations from batch
            GUILayout.Space (20);
            if (GUILayout.Button("Clear Batch")) {
                Simulation.batch.Clear();
            }
        }
    }

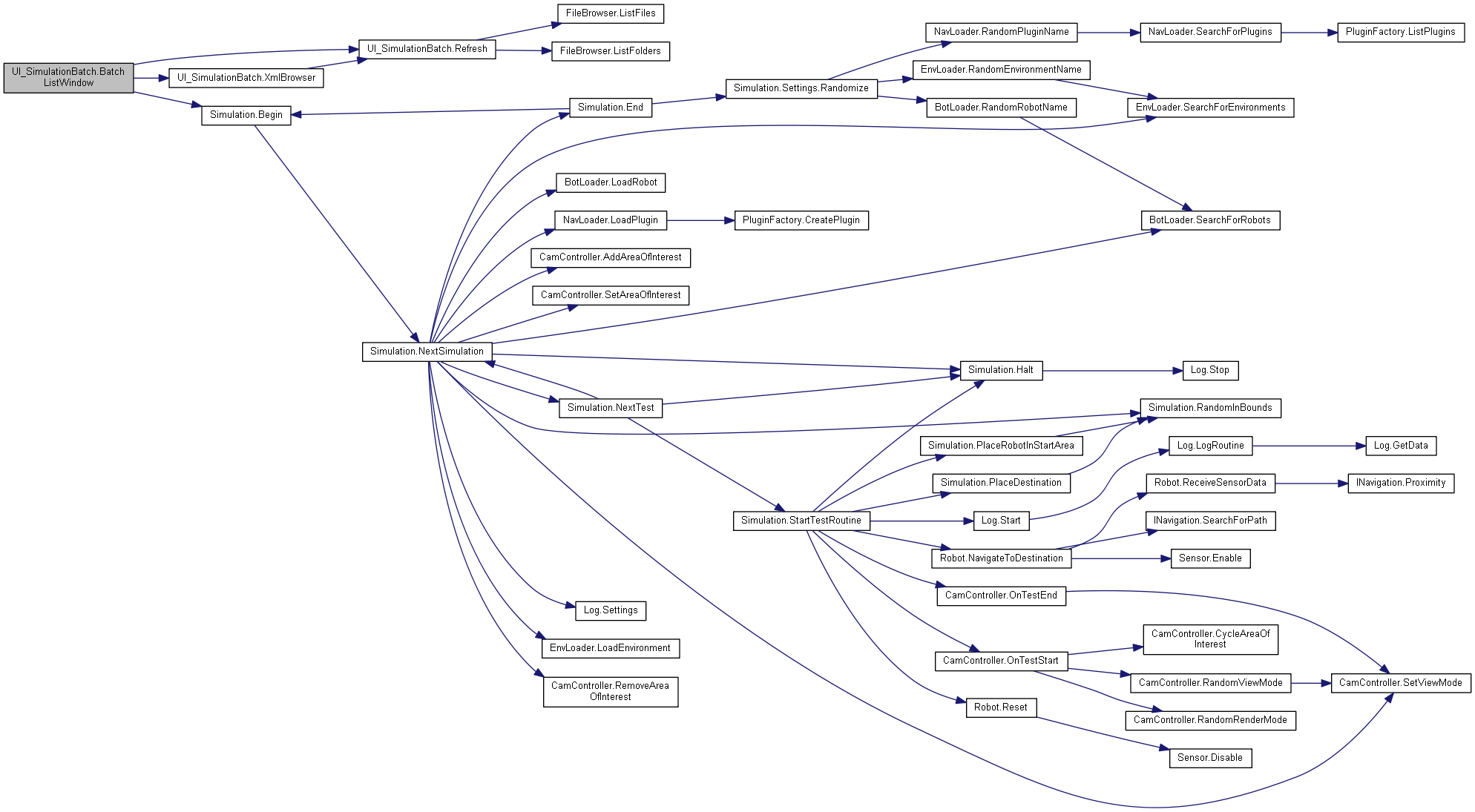

Here is the call graph for this function:

Here is the caller graph for this function:

void UI_SimulationBatch.Refresh ( )

private

Refresh this the files and folders in current directory

Definition at line 66 of file UI_SimulationBatch.cs.

                           {
        _files = FileBrowser.ListFiles(currentDir, "*.xml");
        _folders = FileBrowser.ListFolders(currentDir);
    }

Here is the call graph for this function:

Here is the caller graph for this function:

void UI_SimulationBatch.XmlBrowser ( int  windowID )

private

Browse for XML files to deserialize into Simulation.Settings

Definition at line 144 of file UI_SimulationBatch.cs.

                                  {
        // back button
        GUILayout.BeginHorizontal(GUILayout.Width(UI_Toolbar.I.innerWidth));
        if (GUILayout.Button("<", GUILayout.Width(30f))) {
            _windows.Pop();
        }
        // refresh files and folders
        if (GUILayout.Button("R", GUILayout.Width(30f))) {
            Refresh();
        }
        GUILayout.EndHorizontal();

        // go up one directory
        if (_subPath != "") {
            if (GUILayout.Button("..")) {
                _subPath = Directory.GetParent(_subPath).Name;
                Refresh();
            }
        }
        // list subdirectories
        for (int i = 0; i < _folders.Count; i++) {
            // enter subdirectory
            if (GUILayout.Button(_folders[i])) {
                _subPath += "\\" + new DirectoryInfo(_folders[i]).Name;
                Refresh();
            }
        }
        // list files
        for (int i = 0; i < _files.Count; i++) {
            // try paths from file
            if (GUILayout.Button(_files[i])) {
                string path = currentDir + "\\" + _files[i];
                Simulation.Settings settings = ObjectSerializer.DeSerializeObject<Simulation.Settings>(path);
                if (settings != null) {
                    settings.active = false;
                    Simulation.batch.Add(settings);
                    _windows.Pop();
                }
            }
        }

    }

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

UI_SimulationSettings UI_SimulationBatch._editSettings

private

Definition at line 57 of file UI_SimulationBatch.cs.

List<string> UI_SimulationBatch._files

private

Definition at line 58 of file UI_SimulationBatch.cs.

List<string> UI_SimulationBatch._folders

private

Definition at line 59 of file UI_SimulationBatch.cs.

Simulation.Settings UI_SimulationBatch._settings

private

Definition at line 61 of file UI_SimulationBatch.cs.

string UI_SimulationBatch._subPath

private

Definition at line 60 of file UI_SimulationBatch.cs.

Stack<GUI.WindowFunction> UI_SimulationBatch._windows

private

Definition at line 56 of file UI_SimulationBatch.cs.

Property Documentation

bool UI_SimulationBatch.contextual

get

Definition at line 22 of file UI_SimulationBatch.cs.

string UI_SimulationBatch.currentDir

get

Definition at line 50 of file UI_SimulationBatch.cs.

bool UI_SimulationBatch.hidden

getset

Definition at line 30 of file UI_SimulationBatch.cs.

GUI.WindowFunction UI_SimulationBatch.windowFunction

get

Definition at line 44 of file UI_SimulationBatch.cs.

Rect UI_SimulationBatch.windowRect

getset

Definition at line 40 of file UI_SimulationBatch.cs.

string UI_SimulationBatch.windowTitle

get

Definition at line 34 of file UI_SimulationBatch.cs.

---

The documentation for this class was generated from the following file:

• Assets/botnavsim/Scripts/UI/UI_SimulationBatch.cs
